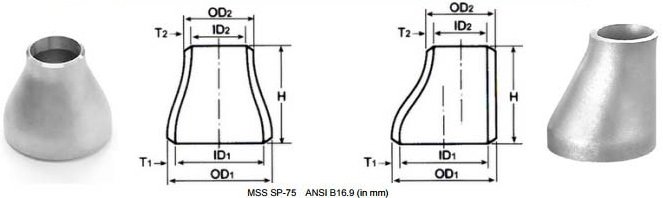

         Reducers

To cater to the needs of different industries across the globe, we unfurl an extensive collection of butt weld pipe fittings. Made from high quality alloy steel, carbon steel, stainless steel and nickel alloys, these butt weld pipe fittings are largely used to prevent fluid leakage and enhance the functionality in an effective manner. We manufacture butt weld pipe fittings in diverse shapes like steel concentric reducer, steel eccentric reducer, stub end and caps at reasonable rates.


Reducers


Buttweld Pipe Fittings Buttweld Pipe Fittings
Buttweld Pipe Fittings Buttweld Pipe Fittings


 Technical Specifications

Nominal Pipe Size (NPS) Outside
Diameter
at Bevel (O/D)
End
to
End
Nominal
Pipe
Size (NPS)
Outside Diameter at Bevel (O/D) End-to-End
Run Outlet H Run Outlet H
¾'' x ½''
¾'' x 3/8''
26.7
26.7
21.3
17.3
38
38
12'' x 10'' 12'' x 8'' 12'' x 6'' 12'' x 5'' 323.8
323.8
323.8
323.8
273.0
219.1
168.3
141.3
203
203
203
203
1'' x ¾''
1'' x ½''
33.4
33.4
26.7
21.3
51
51
1.1/4'' x 1''
1.1/4'' x ¾''
1.1/4'' x ½''
42.2
42.2
42.2
33.4
26.7
21.3
51
51
51
14'' x 12'' 14'' x 10'' 14'' x 8'' 14'' x 6'' 355.6
355.6
355.6
355.6
323.8
273.0
219.1
168.3
330
330
330
330
1.1/2'' x 1.1/4''
1.1/2'' x 1''
1.1/2'' x ¾''
1.1/2'' x ½''
48.3
48.3
48.3
46.3
42.2
33.4
26.7
21.3
64
64
64
64
16'' x 14'' 16'' x 12'' 16'' x 10'' 16'' x 8'' 406.4
406.4
406.4
406.4
355.6
323.8
273.0
219.1
356
356
356
356
2'' x 1.1/2''
2'' x 1.1/4''
2'' x 1''
2'' x ¾''
60.3
60.3
60.3
60.3
48.3
42.2
33.4
26.7
76
76
76
76
18'' x 16'' 18'' x 14'' 18'' x 12'' 18'' x 10'' 457.0
457.0
457.0
457.0
406.4
356.6
323.8
273.0
381
381
381
381
2.1/2'' x 2''
2.1/2'' x 1.1/2''
2.1/2'' x 1.1/4''
2.1/2 x 1''
73.0
73.0
73.0
73.0
60.3
48.3
42.2
33.4
89
89
89
89
20'' x 18'' 20'' x 16'' 20'' x 14'' 20'' x 12'' 508.0
508.0
508.0
508.0
457.0
406.4
355.6
323.8
508
508
508
508
3'' x 2.1/2''
3'' x 2''
3'' x 1.1/2''
3'' x 1.1/4''
88.9
88.9
88.9
88.9
73.0
60.3
48.3
42.2
89
89
89
89
22'' x 20'' 22'' x 18'' 22'' x 16'' 22'' x 14'' 559.0
559.0
559.0
559.0
508.0
457.0
406.4
355.6
508
508
508
508
3.1/2'' x 3''
3.1/2'' x 2.1/2''
3.1/2'' x 2''
3.1/2'' x 1.1/2''
101.6
101.6
101.6
101.6
88.9
73.0
60.3
48.3
102
102
102
102
24'' x 22'' 24'' x 20'' 24'' x 18'' 24'' x 16'' 610.0
610.0
610.0
610.0
559.0
508.0
457.0
406.4
508
508
508
508
4'' x 3.1/2''
4'' x 3''
4'' x 2.1/2''
4'' x 2''
4'' x 1.1/2''
114.3
114.3
114.3
114.3
114.3
101.6
88.9
73.0
60.3
48.3
102
102
102
102
102
26'' x 24'' 26'' x 22'' 26'' x 20'' 26'' x 18'' 660.0
660.0
660.0
660.0
610.0
559.0
508.0
457.0
610
610
610
610
5'' x 4''
5'' x 3.1/2''
5'' x 3''
5'' x 2.1/2''
5'' x 2''
141.3
141.3
141.3
141.3
141.3
114.3
101.6
88.9
73.0
60.3
127
127
127
127
127
28'' x 26'' 28'' x 24'' 28'' x 20'' 28'' x 18'' 711.0
711.0
711.0
711.0
660.0
610.0
508.0
457.0
610
610
610
610
6'' x 5''
6'' x 4''
6'' x 3.1/2''
6'' x 3''
6'' x 2.1/2''
168.3
168.3
168.3
168.3
168.3
141.3
114.3
101.6
88.9
73.0
140
140
140
140
140
30'' x 28'' 30'' x 26'' 30'' x 24'' 30'' x 20'' 762.0
762.0
762.0
762.0
711.0
660.0
610.0
508.0
610
610
610
610
8'' x 6''
8'' x 5''
8'' x 4''
8'' x 3.1/2''
219.1
219.1
219.1
219.1
168.3
141.3
114.3
101.6
152
152
152
152
32'' x 30'' 32'' x 28'' 32'' x 26'' 32'' x 24'' 813.0
813.0
813.0
813.0
762.0
711.0
660.0
610.0
610
610
610
610
10'' x 8''
10'' x 6''
10'' x 5''
10'' x 4''
273.0
273.0
273.0
273.0
219.1
168.3
141.3
114.3
178
178
178
178
34'' x 32'' 34'' x 30'' 34'' x 26'' 34'' x 24'' 864.0
864.0
864.0
864.0
813.0
762.0
660.0
610.0
610
610
610
610



Caps and Stub Ends

Buttweld Pipe Fittings Buttweld Pipe Fittings
Buttweld Pipe Fittings Buttweld Pipe Fittings


 Technical Specifications

Nominal Pipe Size (NPS) Outside Diameter at Bevel (O/D) Long Pattern Length ''F'' Short Pattern 'F' Radius of Follet 'R' Dia of Lap 'G' Length 'E' Limiting Wall Thk for Length 'E' Length 'E1'
1/2'' 21.3 76.0 51 3 35 25 4.57 25
3/4'' 26.7 76.0 51 3 43 25 3.81 25
1'' 33.4 102.0 51 3 51 38 4.57 38
1 ¼'' 42.2 102.0 51 5 64 38 4.83 38
1 ½'' 48.3 102.0 51 6 73 38 5.08 38
2'' 60.3 152.0 64 8 92 38 5.59 44
2 ½'' 73.0 152.0 64 8 105 38 7.11 51
3'' 88.9 152.0 64 10 127 51 7.62 64
3 ½'' 101.6 152.0 76 10 140 64 8.13 76
4'' 114.3 152.0 76 11 157 64 8.64 76
5'' 141.3 203.0 76 11 186 76 9.65 89
6'' 168.3 203.0 89 13 216 89 10.92 102
8'' 219.1 254.0 102 13 270 102 12.7 127
10'' 273.0 254.0 127 13 324 127 12.7 152
12'' 323.8 305.0 152 13 381 152 12.7 178
14'' 355.6 305.0 152 13 413 165 12.7 191
16'' 406.4 305.0 152 13 470 178 12.7 203
18'' 457.0 305.0 152 13 533 203 12.7 229
20'' 508.0 305.0 152 13 584 229 12.7 254
22'' 559.0 305.0 152 13 641 254 12.7 254
24'' 610.0 305.0 152 13 692 267 12.7 305
