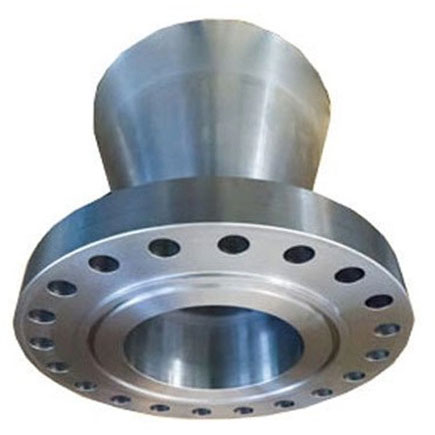

A complex piping network encompasses pipes of varied sizes, which may also be designed in a manner that these pipes may require frequent changes. Consequently, the pipe’s diameter undergoes regular changes to adjust to the incoming stream of variations. Here is where a Stainless Steel Reducing Flange enters: be it in Monel, Inconel, Hastelloy, Carbon Steel or Alloy Steel, it possesses the ability to join pipes of varied sizes together with great ease. ANSI B16.5 Alloy Steel Reducing flanges can endure extreme pressure and are suitable for high-pressure systems like condensers and boilers
Standard Specication For Reducing Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44,
ASA, API-605, AWWA,
Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500
LBS
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642,
DIN2655, DIN2656,
DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638,
DIN2673
DIN Standard
ND-6,10, 16, 25, 40 Etc.
BS : BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 ,
PN40, etc
Table : D / E / F / H / J / K
API STANDARDS : PSI-2000/3000/5000/10000/ETC
JIS Standards : 2220-2004 5k/10k/16k , ETC
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type
Joint (RTJ)
Material & Grades of Reducing Flanges :
Stainless Steel Reducing Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317,
347, 347H, 904L
Duplex & Super Duplex Steel Reducing Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Reducing Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42,
F46, F52, F60, F65, F706
Low Temperature Carbon Steel Reducing Flanges : ASTM A350, LF2, LF3
Alloy Steel Reducing Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Reducing Flanges : ASTM SB 61 , SB62 , SB151 ,
SB152 UNS No. C 70600 (Cu-Ni 90/10), C
71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Reducing Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No.
N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825
(UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601),
Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)
