MALE & FEMALE FLANGES
MALE & FEMALE FLANGES

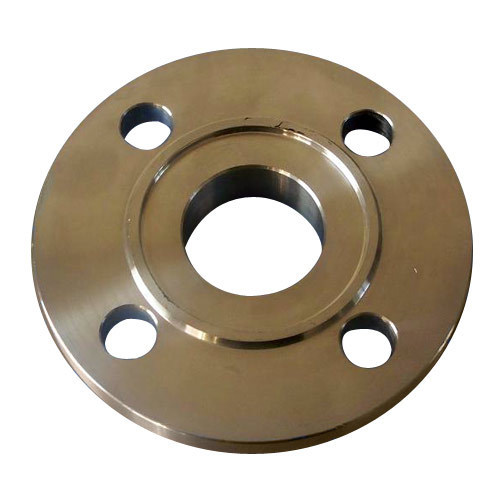

Male & Female Flanges, where the male flange has a face area that extends beyond the normal flange face; the female flange has a depression machined into its face that matches the connecting flange. Our Male &Female Flanges are furnished with a uniform surface and gasket retaining areas. Our Stainless Steel Male & Female Flanges have better waterproofing qualities besides being corrosion resistant. We ship precision made ANSI B16.5 Male & Female Flanges to middle eastern countries
Standard Specication For Male & Female Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44,
ASA, API-605, AWWA,
Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500
LBS
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642,
DIN2655, DIN2656,
DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638,
DIN2673
DIN Standard
ND-6,10, 16, 25, 40 Etc.
BS : BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 ,
PN40, etc
Table : D / E / F / H / J / K
API STANDARDS : PSI-2000/3000/5000/10000/ETC
JIS Standards : 2220-2004 5k/10k/16k , ETC
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type
Joint (RTJ)
Material & Grades of Male & Female Flanges :
Stainless Steel Male & Female Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317,
347, 347H, 904L
Duplex & Super Duplex Steel Male & Female Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Male & Female Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42,
F46, F52, F60, F65, F706
Low Temperature Carbon Steel Male & Female Flanges : ASTM A350, LF2, LF3
Alloy Steel Male & Female Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Male & Female Flanges : ASTM SB 61 , SB62 ,
SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10),
C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Male & Female Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No.
N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825
(UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601),
Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)
