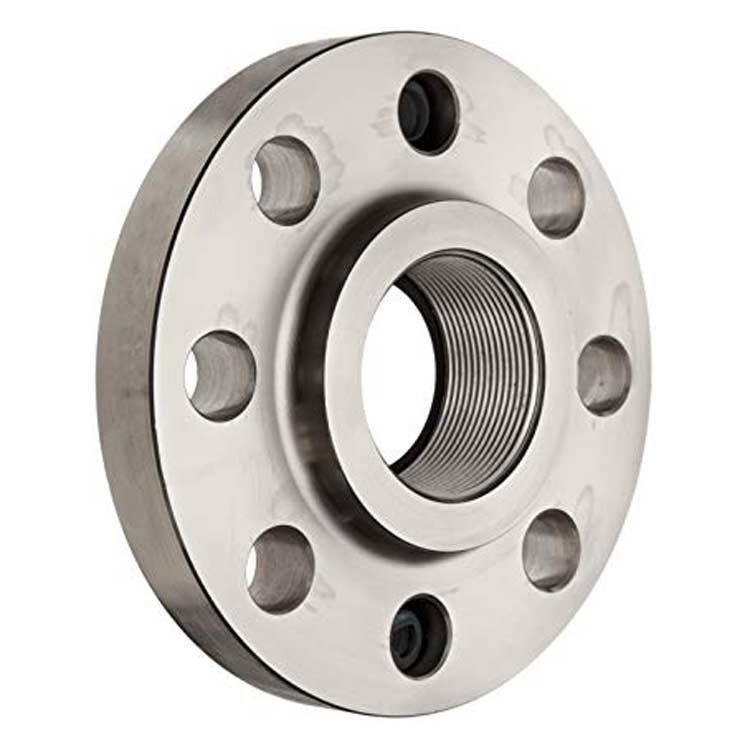

THREADED / SCREWED FLANGES
THREADED / SCREWED FLANGES
The most noteworthy feature of these changes is that they can be joined to a pipe without welding. The bore of Nickel Threaded / Screwed Flanges have threads and can be fitted to pipes that have external threads. Stainless Steel Threaded / Screwed Flanges are low priced, t best for small pipes and can be used in low-pressure applications. They are very beneficial in highly combustible industries where welding is dangerous. We are certified to cater to the challenging requisites of a number of industries through our outstanding products and extraordinary services
Standard Specication For Threaded / Screwed Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44,
ASA, API-605, AWWA,
Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500
LBS
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642,
DIN2655, DIN2656,
DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638,
DIN2673
DIN Standard
ND-6,10, 16, 25, 40 Etc.
BS : BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 ,
PN40, etc
Table : D / E / F / H / J / K
API STANDARDS : PSI-2000/3000/5000/10000/ETC
JIS Standards : 2220-2004 5k/10k/16k , ETC
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type
Joint (RTJ)
Material & Grades of Threaded / Screwed Flanges :
Stainless Steel Threaded / Screwed Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317,
347, 347H, 904L
Duplex & Super Duplex Steel Threaded / Screwed Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Threaded / Screwed Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42,
F46, F52, F60, F65, F706
Low Temperature Carbon Steel Threaded / Screwed Flanges : ASTM A350, LF2, LF3
Alloy Steel Threaded / Screwed Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Threaded / Screwed Flanges : ASTM SB 61 , SB62 ,
SB151 , SB152 UNS No. C 70600 (Cu-Ni
90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Threaded / Screwed Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No.
N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825
(UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601),
Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)
