WELD NECK FLANGES

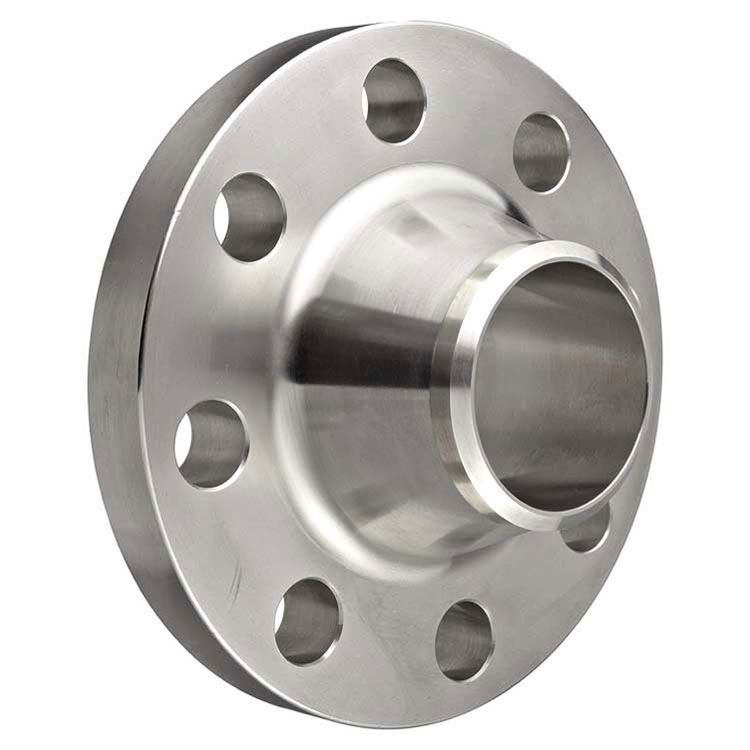

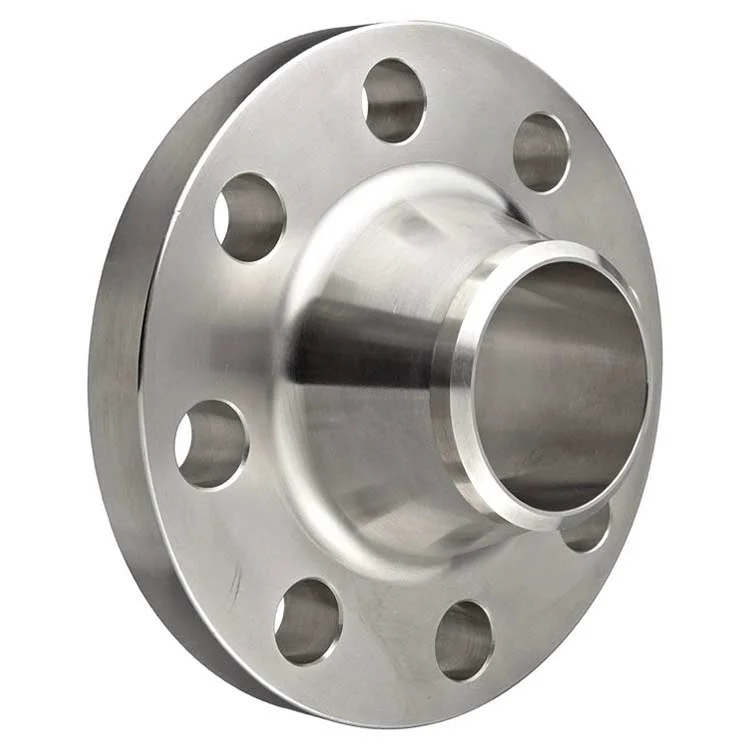

Weld Neck Flange is flanges that designed to be joined to a piping system by butt welding. This kind of flange include lots of specification. Weld Neck Flange is expensive because of its long neck and cost of people for contact WN flange with pipeline or fitting but is preferred for high-stress applications. The necks, or hubs, transmits stresses to the pipeline. The gradual transition of thickness from the base of the hub to the wall thickness at the butt weld provides important reinforcement of the Weld Neck Flange. The bore of Weld-Neck flange matches bore of the pipeline, reducing turbulence and erosion.

Weld Neck Flange is flanges that designed to be joined to a piping system by butt welding. This kind offlange include lots of specification, Weld neck Flange is expensive because of its long neck and cost of people for contact WN flange with pipeline or fitting but is preferred for high stress applications. The necks, or hubs, transmits stresses to the pipeline.

The gradual transition of thickness from the base of the hub to the wall thickness at the butt weld provides important reinforcement of the Weld Neck flange. The bore of Weld-Neck flange matches bore of the pipeline, reducing turbulen.

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
DIN Standard ND-6,10, 16, 25, 40 Etc.
BS : BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 , PN40, etc
Table : D / E / F / H / J / K
API STANDARDS : PSI-2000/3000/5000/10000/ETC
JIS Standards : 2220-2004 5k/10k/16k , ETC
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Material & Grades of Weld Neck Flanges (WNRF) :

Stainless Steel Weld Neck Flanges :

ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Weld Neck Flanges :

ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Weld Neck Flanges :

ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 Low Temperature Carbon Steel Weld Neck Flanges : ASTM A350, LF2, LF3

Alloy Steel Weld Neck Flanges :

ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 Copper Alloy Steel Weld Neck Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Weld Neck Flanges :

ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Applications, Industries & Export Supply

Our Weld Neck Flanges are used for high-pressure and cyclic service conditions needing strong butt-welded flange joints. We supply project and replacement requirements with controlled quality, dimensional checks, and material traceability as per ASME B16.5 / ASTM A182.

Industries Served: oil & gas, petrochemical, power, EPC, shipbuilding, water treatment, process manufacturing, and heavy engineering.

Supply Regions: India, GCC/Gulf countries, and global export destinations with commercial support for manufacturer, supplier, stockist, and exporter requirements.

Explore More: Flanges | Forged Fittings | Buttweld Fittings | Olets

Frequently Asked Questions About Weld Neck Flanges

Why choose a Weld Neck Flange over a Slip-On Flange?

Weld Neck flanges are designed with a long tapered hub that transfers stress to the pipe, reducing stress concentration at the base of the flange. This makes them ideal for high-pressure, severe, and cyclic applications where Slip-On flanges might fail or leak. They also allow for better radiography inspection of the weld.

Frequently Asked Questions

Why are Weld Neck Flanges preferred for high-stress applications?

Weld Neck Flanges feature a long tapered hub that is butt-welded directly to the pipe. This transfers structural stress from the flange base to the pipe itself, preventing stress concentration. It is the absolute highest-integrity connection for extreme temperature fluctuations and high-pressure lines.

How do I specify the bore size for a Weld Neck Flange order?

Because Weld Neck Flanges must match the inner diameter of your existing pipe to ensure uninterrupted fluid flow, you must specify the pipe's schedule (e.g., Schedule 40, Schedule 80) or exact bore dimension when requesting a quote.
