TONGUE & GROOVE FLANGES

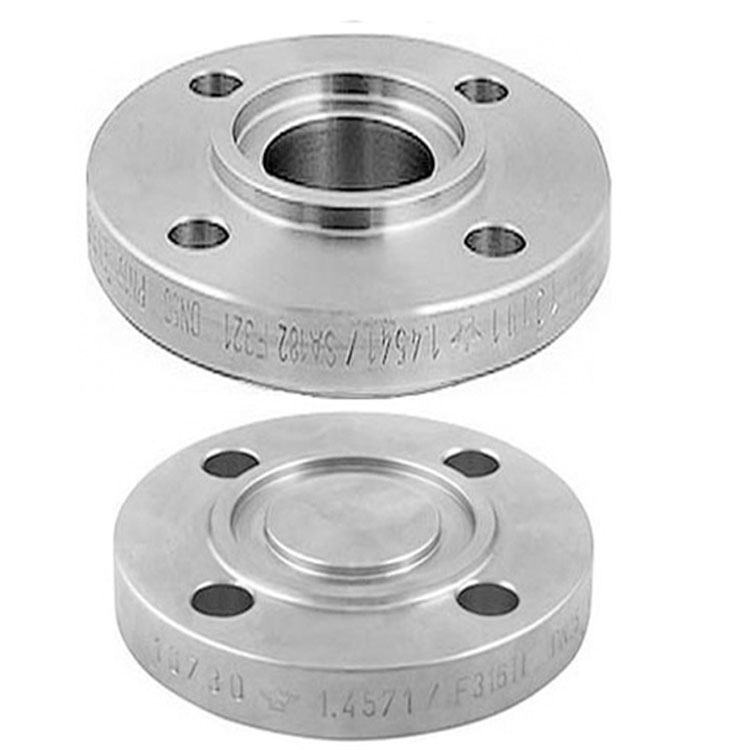

Tongue & Groove Flange, the Tongue Flange is manufactured with a raised ring that is machined into its face. The Groove Flange is produced with a matching depression machined onto its face. In order to have a watertight connection, it is important to match the faces of these flanges. Alloy 20 Groove & Tongue Flanges are self-aligning; they do not come in contact with the inner fluid or gas of the tube or pipe. Instantly, they are free from any corrosion. Nickel Tongue & Groove Flanges are used in the chemical, petroleum and crude oil extraction industry

Tongue and Groove Flange Face, Gasket for Tongue and Groove Flange, tongue-and-groove (t&g) flange, tongue and groove flange joint

large tongue and groove flange dimensions, tongue and groove type flange, tongue and groove flange applications

ANSI/ASME B16.5 Groove and Tongue Flange Standard Specification

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
DIN Standard ND-6,10, 16, 25, 40 Etc.
BS : BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 , PN40, etc
Table : D / E / F / H / J / K
API STANDARDS : PSI-2000/3000/5000/10000/ETC
JIS Standards : 2220-2004 5k/10k/16k , ETC
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

ASME B16.5 Tongue and Groove Flange Material Specification

Stainless Steel Tongue and Groove Flange:
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Groove and Tongue Flange :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Tongue and Groove Flange:
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Groove and Tongue Flange: ASTM A350, LF2, LF3

Alloy Steel Groove and Tongue Flange:
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Tongue and Groove Flange : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Groove and Tongue Flange:
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Applications, Industries & Export Supply

Our Tongue and Groove Flanges are used for reliable gasket seating and improved sealing under service load. We maintain focus on standards compliance, dimensional accuracy, and material traceability to support project and replacement requirements.

Industries Served: oil & gas, petrochemical, refineries, power generation, EPC projects, marine, water treatment, and general engineering.

Supply Regions: India, GCC/Gulf markets, and global export projects with commercial support for manufacturer, supplier, stockist, and exporter requirements.

Request a Quote: Share your size, pressure class, material grade, and quantity for faster offer turnaround.

Explore More: Flanges | Forged Fittings | Buttweld Fittings | Olets

Frequently Asked Questions: Tongue & Groove Flanges

Q: How do Tongue and Groove Flanges seal together?

A: They are manufactured as a matched pair. One flange has a raised ring (the tongue) and the opposing flange has a matching depression (the groove). This design forces the gasket to remain completely confined, making it physically impossible for the gasket to blow out under extreme pressure.

Q: What is the primary application for Tongue and Groove Flange sets?

A: They are widely used in dangerous, toxic, or highly flammable fluid pipelines where leakage is catastrophic, or in systems subjected to severe vibration and shifting.
