SOCKET WELD FLANGES

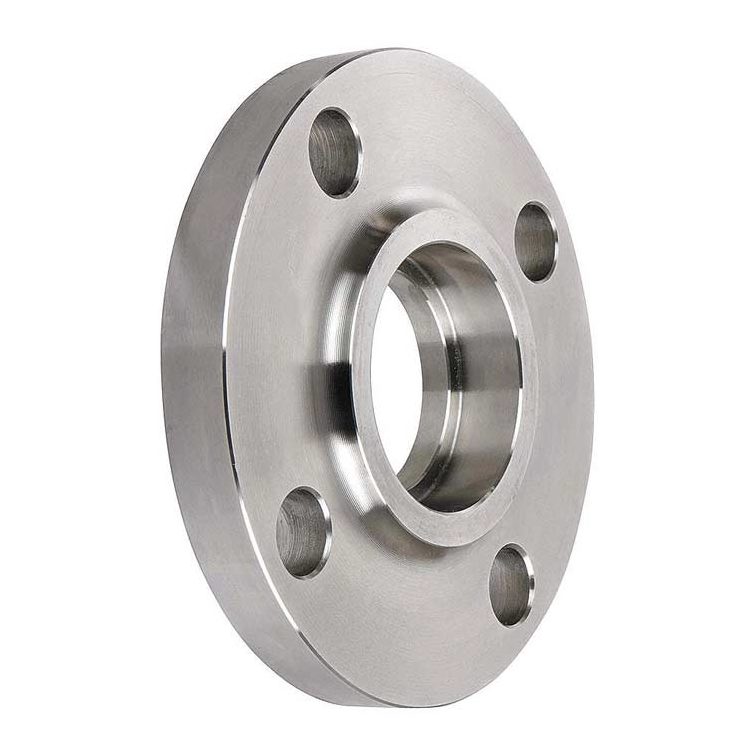

Socket Weld Flanges (SWRF) are counter-bored i.e. the bore of the Flange and pipe, both are same, thereby providing a good ow of the product through the pipe. Initially used for small-sized high-pressure pipes, our SMO 254 Socket Weld Flanges are now used in high-pressure systems too. Our Stainless Steel Socket Weld Flanges are oxidation resistant and promote better weldability and fabricability. We seek to offer ANSI B16.5 Carbon Steel Socket Weld Flanges that have excellent stress corrosion cracking resistance to the LNG, seawater and mining industry.
Standard Specification For Socket Weld Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44,
ASA, API-605, AWWA,
Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500
LBS
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642,
DIN2655, DIN2656,
DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638,
DIN2673
DIN Standard
ND-6,10, 16, 25, 40 Etc.
BS : BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 ,
PN40, etc
Table : D / E / F / H / J / K
API STANDARDS : PSI-2000/3000/5000/10000/ETC
JIS Standards : 2220-2004 5k/10k/16k , ETC
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type
Joint (RTJ)
Stainless Steel Socket weld Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317,
347, 347H, 904L
Duplex & Super Duplex Steel Socket weld Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Socket weld Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42,
F46, F52, F60, F65, F706
Low Temperature Carbon Steel Socket weld Flanges : ASTM A350, LF2, LF3
Alloy Steel Socket weld Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Socket weld Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C
70600 (Cu-Ni 90/10), C
71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Socket weld Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No.
N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825
(UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601),
Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020
Applications, Industries & Export Supply
Our Socket Weld Flanges are used for small-bore high-pressure service requiring strong socket-welded joints. We maintain focus on standards compliance, dimensional accuracy, and material traceability to support project and replacement requirements.
Industries Served: oil & gas, petrochemical, refineries, power generation, EPC projects, marine, water treatment, and general engineering.
Supply Regions: India, GCC/Gulf markets, and global export projects with commercial support for manufacturer, supplier, stockist, and exporter requirements.
Request a Quote: Share your size, pressure class, material grade, and quantity for faster offer turnaround.
Explore More: Flanges | Forged Fittings | Buttweld Fittings | Olets
Frequently Asked Questions About Socket Weld Flanges
Why is an expansion gap required when welding Socket Weld Flanges?
When installing a Socket Weld flange, the pipe is inserted into the socket until it bottoms out, and then backed off slightly to create an expansion gap (typically 1/16 inch or 1.6 mm) before welding. This gap allows for thermal expansion of the pipe and prevents bottoming out stresses that could cause the weld to crack under load or thermal cycling.
Frequently Asked Questions
What pressure classes are available for your Socket Weld Flanges?We manufacture forged socket weld flanges strictly adhering to ASME B16.5 dimension standards, available in 150#, 300#, 600#, 900#, 1500#, and 2500# pressure classes. These high-pressure ratings are ideal for critical, leak-free pipeline configurations.
What is the benefit of using Socket Weld connections?Socket weld flanges feature a recessed area where the pipe is inserted before welding. This eliminates the need for complex pipe beveling and ensures precise alignment, making them the preferred choice for smaller diameter pipelines (typically NPS 2 or smaller) in high-pressure systems.
Which material grades do you stock for Socket Weld Flanges?We stock and supply forged flanges in a comprehensive range of materials, including Stainless Steel (ASTM A182 F304/F304L, F316/F316L), Carbon Steel (ASTM A105), Alloy Steel, and Duplex steel, ensuring chemical compatibility with any industrial fluid.
Are your Socket Weld Flanges tested for high-pressure applications?Yes. All Gandhi Metal India forged flanges undergo rigorous testing to ensure there are no micro-cracks before they are shipped to refineries or EPC projects.
